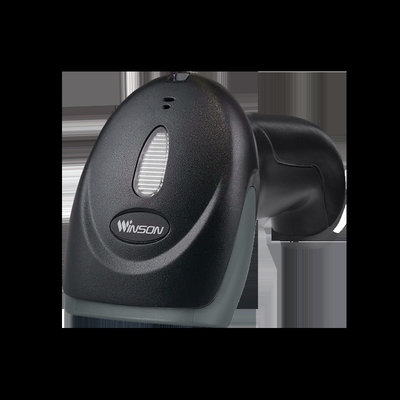

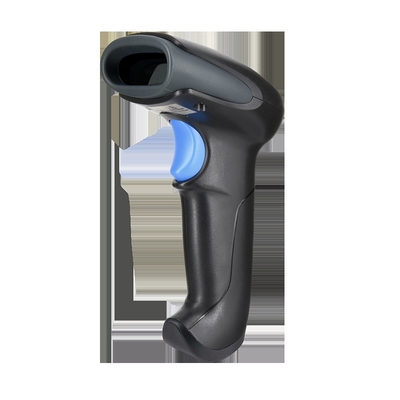

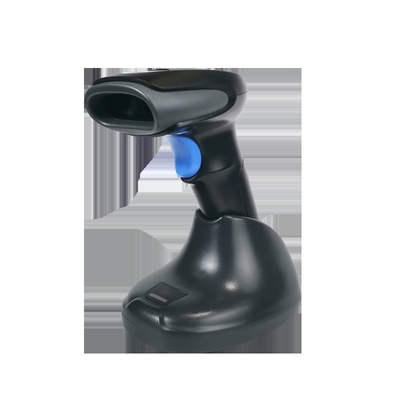

Name: Handheld QR Code Reader Wireless 2.4G Barcode Scanner 1D 2D Barcode Reader USB Wired QR Code Scanner for Inventory
Brand: Guangzhou Winson Information Technology Co., Ltd.
Availability: InStock

Home Products Wireless

Handheld QR Code Reader Wireless 2.4G Barcode Scanner 1D 2D Barcode Reader USB Wired QR Code Scanner for Inventory

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	winson

Contact Now

Detailed Product Description

Private Mold:	Yes	Products Status:	Stock
Type:	Barcode Scanner	Scan Element Type:	CMOS
Colour Depth:	32 Bit	Interface Type:	PS/2
Max Paper Size:	-	Optical Resolution:	640x480 Pixels
Scan Speed:	350 ±50 Scans/second	Warranty(year):	1-Year
After-sales Service:	Call Center And On-line Technical Support	Software Development Kit (sdk):	NO
Color:	Black	Product Type:	QR Code Scanner
Interface:	USB HID KEYBOARD/USB VCP	Photo Sensor:	CMOS Array Sensor
Voltage Requirement:	DC5V±10%	Dimensions:	90mm67mm168mm
Weight:	130g	Indicator:	Beeper, LED

Product Description

Specification

Communication mode	Cache mode/Inventory mode
Communication mode	2.402 to 2.480GHz
Transmission range	30m(In empty area)
Battery capacity	2000mAh (Lithium battery)
Charge Time from Empty to Full Charge	5H
Duration of use	11H (wireless mode,real-time mode communication mode,60 scans/minute)
Interface Supported	USB HID KEYBOARD/USB VCP or RS-232
Input Voltage	DC 5V
Current	150mA
Sensor	640×480 CMOS
Illumination	White LED
Focus	Red LED
Scanning Angle	Pitch angle:+55° Skew angle:+360° Tilt angle:+55°
Field of view	36°(H),27°(V)
Reading accuracy	≥5mil
Decode Capability	1D:Code 128,Ean-13 ,Ean-8,UPC-E,UPC-A,ITF-25(Interleaved 2 0f 5),Code39,Code93,Codabar 2D:QR Code,Data Matrix,PDF417
Temperature	operation:-20°C to 60°C storage:-40°C to 80°C
Humidity	operation:5%~95% (no condensation)
Ambient light	0~100,000LUX
