Name: OEM Industrial Long Distance Barcode Scanner Handheld Barcode Scanner Portable 2d High Speed Base Holder
Brand: Guangzhou Winson Information Technology Co., Ltd.
Availability: InStock

Home Products Industrial Barcode Scanner

OEM Industrial Long Distance Barcode Scanner Handheld Barcode Scanner Portable 2d High Speed Base Holder

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Winson

Contact Now

Detailed Product Description

Private Mold:	Yes	Products Status:	Stock
Type:	Barcode Scanner	Scan Element Type:	CMOS
Colour Depth:	32 Bit	Interface Type:	Usb, COM, PS/2
Max Paper Size:	N/a	Optical Resolution:	1280x800 Pix
Scan Speed:	350 Scans/second	Warranty(year):	1-Year
After-sales Service:	Call Center And On-line Technical Support	Software Development Kit (sdk):	NO
Color:	Blue, Black, Bule	Size:	92mmX75mmX184mm
Weight:	260g	Voltage Requirement:	DC 5V±5%
Interface:	USB HID Keyboard/USB VCP/RS232	Lighting Source:	Illumination:5600k White LED
View Field:	DP:H:54°,H33°	Operating Temperature:	-20°C To 50°C/-4°F To 122°F
Storage Temperature:	-40°C To 70°C/-40°F To 158°F

Product Description

Specification

Communications	Blue tooth 4.2，Class 2
Radio Range	10m（30 feet）
Size	Scanner：92mmx75mmx184mm(LWH) Base：221mm x89mm x 71mm(LWH)
Weight	Scanner：300g Base：220g
Input Voltage	DC 5V±5%
Working Current	279mA
Stand-by Current	40mA
Color	Blue+Black
Interface	USBHIDKeyboard/USBVCP/RS232
Indicator	LEDIndicator/Buzzer/Vibration

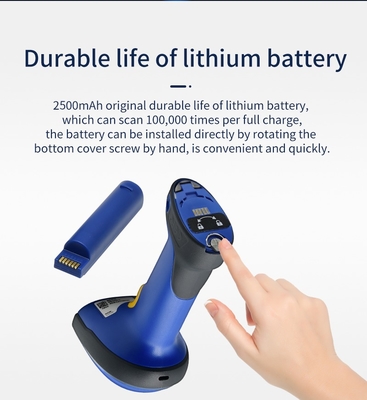

Battery	2500mAhrechargeablelithiumbattery
FullChargeTime	Wholemachinechargingtime：5h Batterycompartmentchargingtime：3h
LightingSource	WhiteLED
Aiminglight	SR:RedcrosslaserHD:RedBarLED
Filedofview	Level：42°,Vertical：28°
SensorResolution	1280x800pixels
MinPrintContras	Minreflectiondifference15%
ScanAngle	TiltAngle：-60°to0°，0°to+60° SkewAngle：-60°to0°，0°to+60° RotateAngle：-180°to0°，0°to+180°
ReadingAccuracy	SR:1D≥0.076mm/3mil（PCS 0.9） 2D≥0.178mm/7mil（PCS 0.9） HD:1D≥0.076mm/3mil（PCS 0.9） 2D≥0.178mm/7mil（PCS 0.9）
Temperature	20°C~50°C/-4°F~122°F(Operating) 40°C~70°C/-40°F~158°F(Storage)
Humidity	0-95%（Nocondensation）
Drop Test	Scanner:Can withstand 50 times drops of fallin from 2 meters to concrete surface
Tumble Test	Scanner:Can withstand 5000 rolls within 1 meter
Leakproofness Grade	Scanner：IP67 Base：IP51
Barcode Reading Distance Range	3mil：11-22cm(SR) 8-18cm (HD) 13mil：6-65cm(SR) 5-60cm(HD)
1D	Codarbar,Code39,Code32,Interleaved2of5（ITF25）, Industrial2of5⼯业25码,Matrix2of5,Code93,Code 11,Code128,GS1-128,UPC-A,UPC-E，ENA/JAN-8,EAN/ JAN-13,ISBN,ISSN,GS1Databar,GS1DatabarLimited, GS1DatabarExpanded,ISBT,MSI,Febraban
2D	PDF417,MicroPDF417,QRCode,MicroQR,DataMatrix, Aztec
