Name: 1D and 2D Code Portable Barcode Reader Wired Wireless for Supermarket Payment Kiosks
Brand: Guangzhou Winson Information Technology Co., Ltd.
Availability: InStock

Home Products Wired

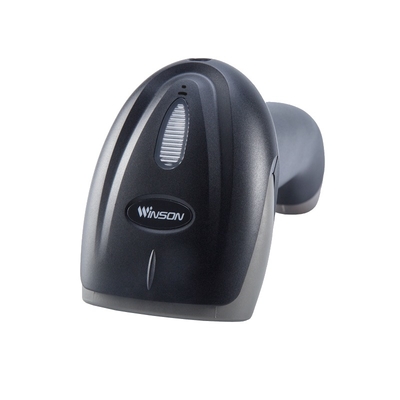

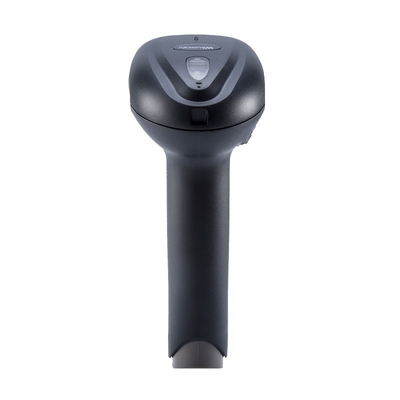

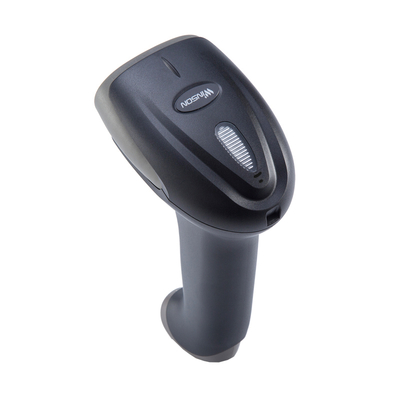

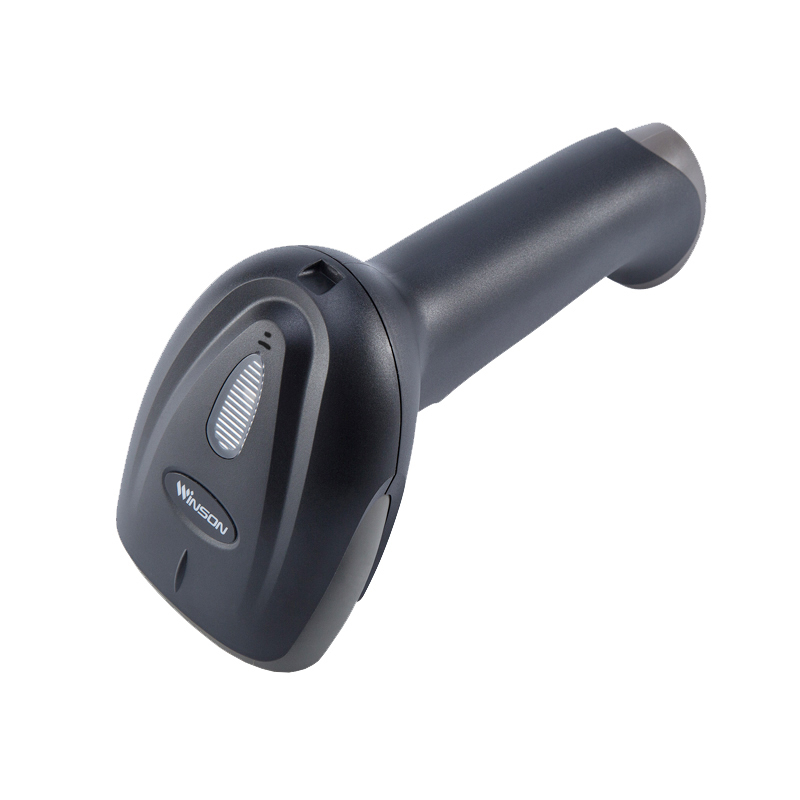

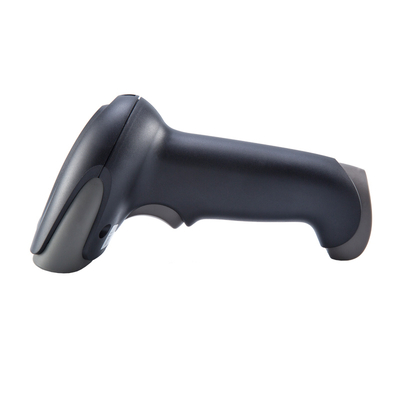

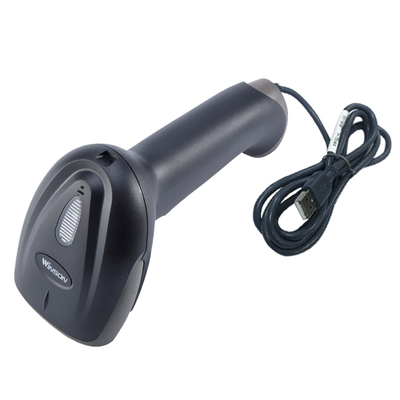

1D and 2D Code Portable Barcode Reader Wired Wireless for Supermarket Payment Kiosks

Product Details:

Place of Origin:	China
Brand Name:	winson

Contact Now

Detailed Product Description

Private Mold:	Yes	Products Status:	Stock
Type:	Barcode Scanner	Scan Element Type:	CMOS
Colour Depth:	32 Bit	Interface Type:	Usb, COM, PS/2
Max Paper Size:	N/a	Optical Resolution:	640X480 Pixel
Scan Speed:	30fps	Warranty(year):	1-Year
After-sales Service:	Call Center And On-line Technical Support	Software Development Kit (sdk):	NO
Color:	Black	Interface Supported:	USB HID KEYBOARD/USB VCP
Input Voltage:	DC 5V±5%	Current:	170mA
Image Sensor:	CMOS Array Sensor	Sensor Resolution:	640X480 Pixels
Light Source:	White LED

Product Description

Specification

Interface Supported	USB HID KEYBOARD/USB VCP
Input Voltage	DC 5V±5%
Current	170mA
Image Sensor	CMOS Array Sensor
Sensor Resolution	640X480 Pixels
Light Source	White LED
Aim Light Source	Red LED
Scanning Angle	Pitch angle:±55°;Skew angle:±55°;Tilt angle:±360°
Field of View	43°(H),33°(V)
Min Resolution	5mil
Min .PCS value	10%
Language	Multiple Languages
Data Edition	Support for custom data output
Decode Capability	1D: Code128,EAN-13,EAN-8,UPC-E,UPC-A,ISBN,ISSN,Code11,Interleaved 2 of 5,Code39,Code93,Code32,Codabar, ,Matrix 2 of 5,Industrial 25,IATA25,MSI Plessey,GS1 DataBar, Plessey,Febraban,Composite 2D： QR Code,Micro QR,Data Matrix,PDF417,Micro PDF417,Aztec,Maxicode,HanXin code,Dotcode
