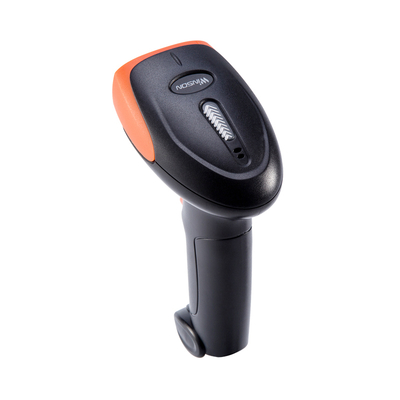

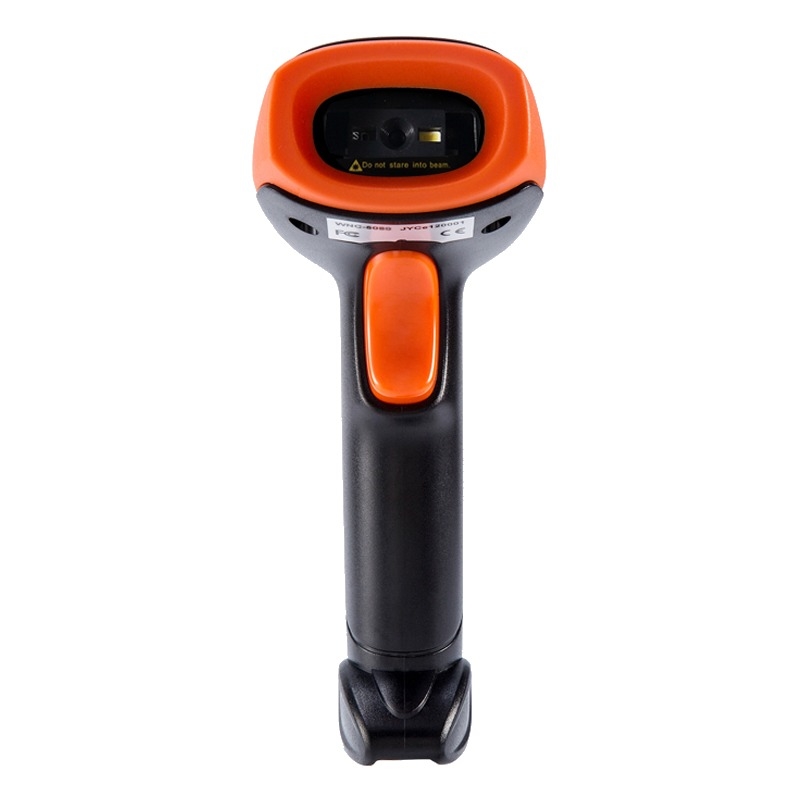

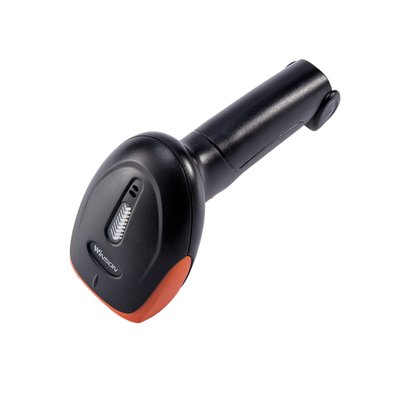

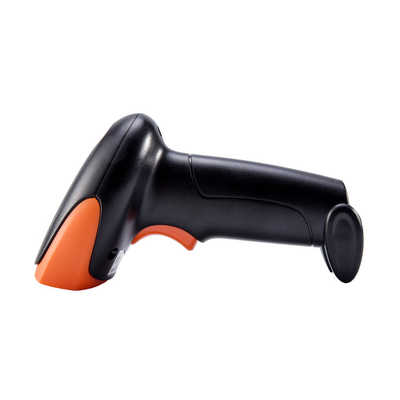

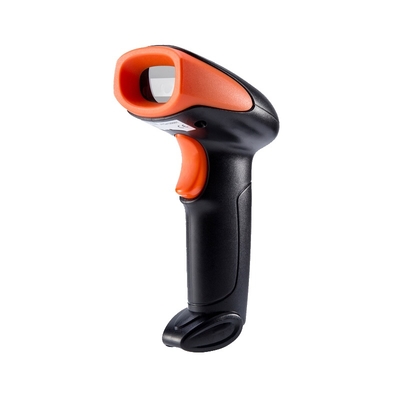

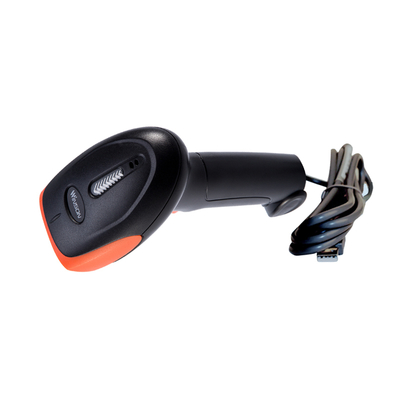

Name: Wholesale Wired USB 2D Qr Barcode Scanner Handheld Bar Code Scan Reader With Factory Price
Brand: Guangzhou Winson Information Technology Co., Ltd.
Availability: InStock

Home Products Wired

Wholesale Wired USB 2D Qr Barcode Scanner Handheld Bar Code Scan Reader With Factory Price

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	winson

Contact Now

Detailed Product Description

Private Mold:	Yes	Products Status:	Stock
Type:	Portable Scanner	Scan Element Type:	CMOS
Colour Depth:	32 Bit	Interface Type:	Usb, PS/2, Rs232/485
Max Paper Size:	N/a	Optical Resolution:	640X480 Pixels
Scan Speed:	Up To 30fps	Warranty(year):	1-Year
After-sales Service:	Call Center And On-line Technical Support	Software Development Kit (sdk):	Yes
Color:	Black	Voltage/Current:	DC 5V+-10%; Max 120ma
Sensor Resolution:	648*480 Pixels	Interface:	USB HID KEYBOARD / USB VCP
Photo Sensor:	CMOS Array Sensor	Aim Light Source:	White LED*1
Min .Resolution:	1D:5mil(0.127mm) 2D:13mil(0.33mm)	Min.PCS Value:	>30%UPC/EAN 13(13mil)
Dimensions (LWH):	67mm * 97mm * 165 Mm

Product Description

Specification

Interface Supported	RS-232/USB HID KEYBOARD/USB VCP
Input Voltage	DC 5V±10%
Current	Max:135mA
Image Sensor	CMOS Array Sensor
Sensor Resolution	648X488 Pixels
Light Source	White LED
Aim Light Source	Red Bar LED
Scanning Angle	Pitch angle:±60°;Skew angle:±60°;Tilt angle:±60°
Field of View	34°(H),26°(V)
Min Resolution	0.127/5mil（PCS 0.9）
Min .PCS value	〉25%UPC/EAN 13（13mil）
Language	Multiple Languages
Data Edition	Support for custom data output
Decode Capability	1D：UPC/EAN,Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5,Interleaved 2 of 5, Codabar, MSI，GS1 Databar 2D：QR, PDF417，Data Matrix
Dimensions	70mm95mm168mm(LWH)
Weight	132.4g
Indicator	Beeper, LED
Temperature	-20°∽65°C / -4°∽149°F(operation) /-30°∽70°C /-22°∽158°F(storage)
Humidity	5 - 90% (operation) ) 5 - 90% (storage)
Ambient Light:	Up to 80,000 lx
Shock Drop Test	1.5m drop onto concrete surface
