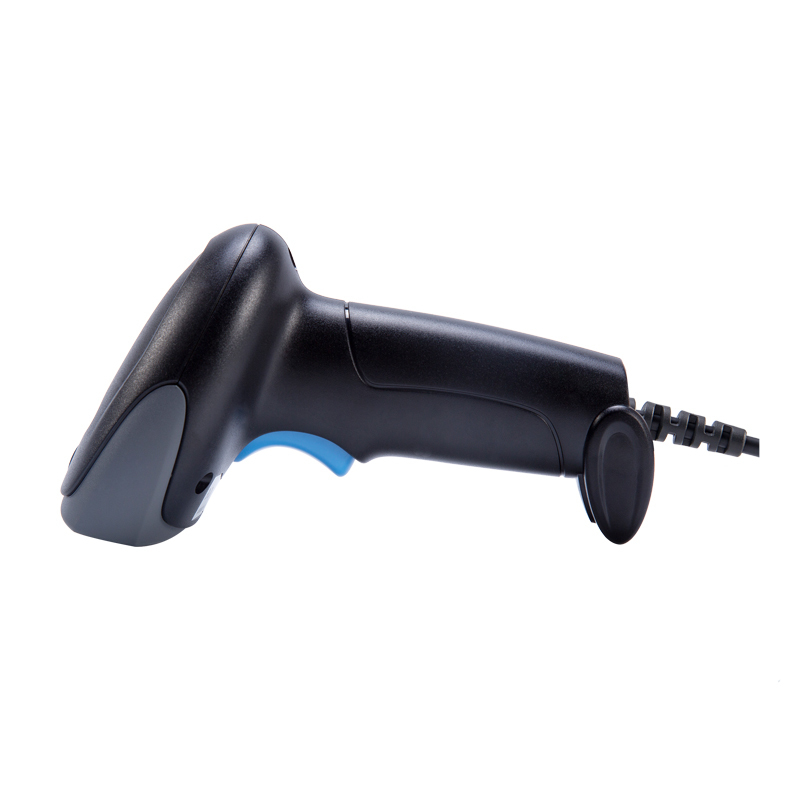

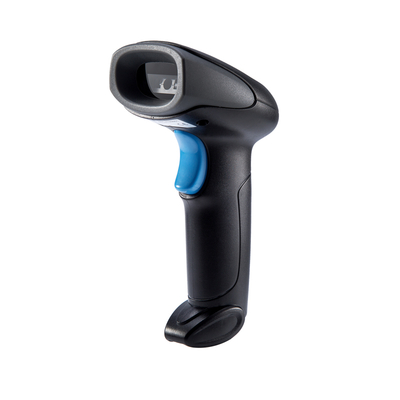

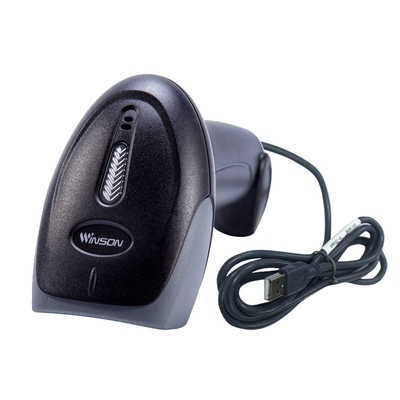

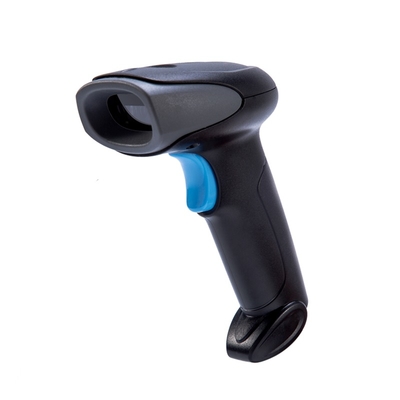

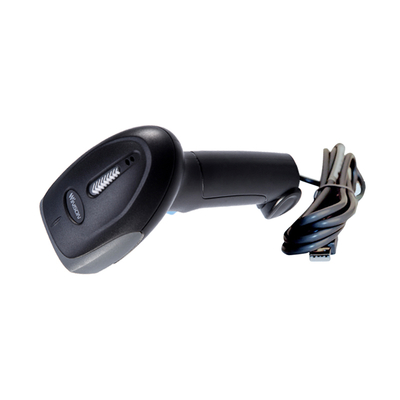

Name: Supermarket Omnidirectional Wired 1D/2D Barcode Reader QR Code Scanner Auto Sleep USB COM Hand-Free Scanner
Brand: Guangzhou Winson Information Technology Co., Ltd.
Availability: InStock

Home Products Wired

Supermarket Omnidirectional Wired 1D/2D Barcode Reader QR Code Scanner Auto Sleep USB COM Hand-Free Scanner

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Winson

Contact Now

Detailed Product Description

Private Mold:	Yes	Products Status:	Stock
Type:	Barcode Scanner	Scan Element Type:	CMOS
Colour Depth:	32 Bit	Interface Type:	COM, PS/2
Max Paper Size:	N/a	Optical Resolution:	648 X 488 Pixels
Scan Speed:	30ms	Warranty(year):	1-Year
After-sales Service:	Call Center And On-line Technical Support	Software Development Kit (sdk):	NO
Color:	Black	Interface Supported:	RS-232/USB HID KEYBOARD/USB VCP
Input Voltage:	DC 5V±10%	Current:	Max:135mA
Image Sensor:	CMOS Linear Sensor	Sensor Resolution:	2500pixels
Light Source:	632nm Red LED	Decoding Rate::	350 Scans/second±20 Scans/second
Scanning Angle:	Pitch Angle:±35°;Skew Angle:±75°;Tilt Angle:±40°

Product Description

Specification

Interface Supported	RS-232/USB HID KEYBOARD/USB VCP
Input Voltage	DC 5V±10%
Current	Max:135mA
Image Sensor	CMOS Linear Sensor
Sensor Resolution	2500pixels
Light Source	632nm Red LED
Decoding rate:	350 scans/second±20 scans/second
Scanning Angle	Pitch angle:±35°;Skew angle:±75°;Tilt angle:±40°
Min Resolution	〉25%UPC/EAN 13（13mil）
Language	Multiple Languages
Data Edition	Support for custom data output
Decode Capability	EAN13，EAN8，UPC A，UPC E，CODABAR（NW-7），CODE 39，CODE 93，INTERLEAVED 2OF5，STANDARD 2OF5，MATRIX 2OF5，CODE 128，EAN/UCC 128，CODE 11，CHINESE POST
Temperature	-20°∽65°C / -4°∽149°F(operation) /-30°∽70°C /-22°∽158°F(storage)
