Name: Supermarket Handheld USB Barcode Scanner CCD Linear Image Screen Code Reader
Brand: Guangzhou Winson Information Technology Co., Ltd.
Availability: InStock

Home Products 1D CCD Barcode Scanner

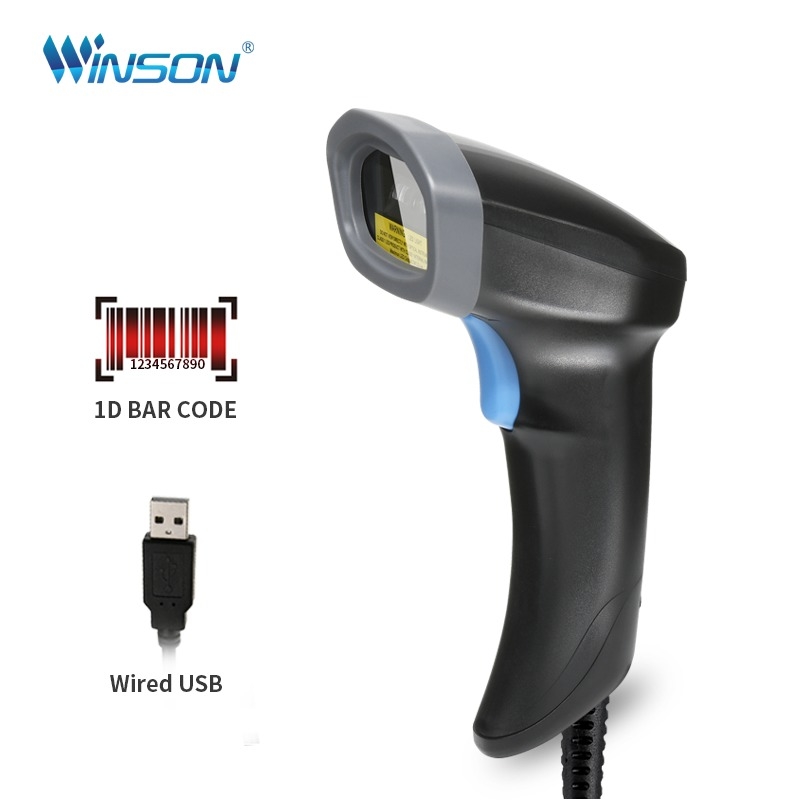

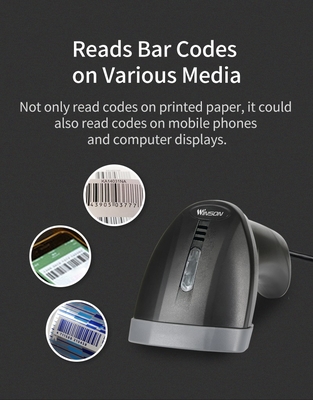

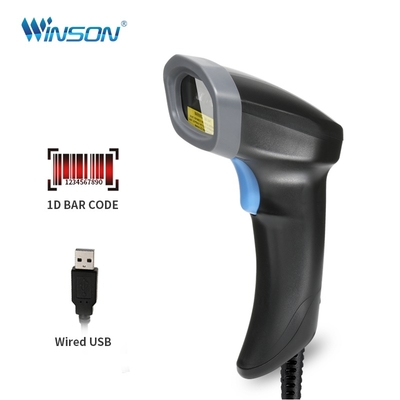

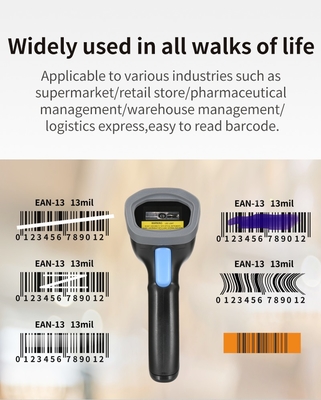

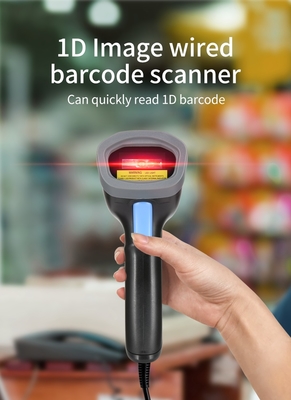

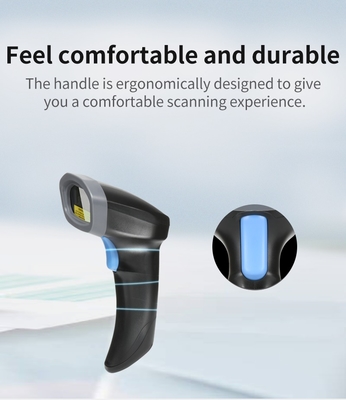

Supermarket Handheld USB Barcode Scanner CCD Linear Image Screen Code Reader

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	winson

Contact Now

Detailed Product Description

Private Mold:	Yes	Products Status:	Stock
Type:	CCD Barcode Scanner	Scan Element Type:	CCD
Colour Depth:	32 Bit	Interface Type:	Usb, COM, PS/2
Max Paper Size:	N/a	Optical Resolution:	13mil
Scan Speed:	350 Scans/second	Warranty(year):	1-Year
After-sales Service:	Call Center And On-line Technical Support	Software Development Kit (sdk):	Yes
Color:	Black, Black	Size:	92mmX75mmX184mm
Weight:	260g	Voltage Requirement:	DC 5V±5%
Interface:	USB HID Keyboard/USB VCP/RS232	Lighting Source:	Illumination:5600k White LED
View Field:	-20°C To 50°C/-4°F To 122°F	Operating Temperature:	-40°C To 70°C/-40°F To 158°F

Product Description

Specification

Interface	USB HID KEYBOARD/USB VCP/RS-232
Light source	632nm Red LED
Photo sensor	CCD linear sensor
Sensor resolution	1500pix
Voltage requirement	DC 5V+-10%
Min .PCS value	>30%UPC/EAN13(13mil)
Mechanical shock	1.5m drop onto concrete surface
Scan rate	350+-50 (scans/second)
Certification	ce, RoHS
