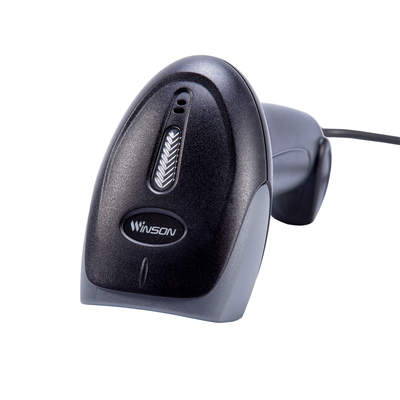

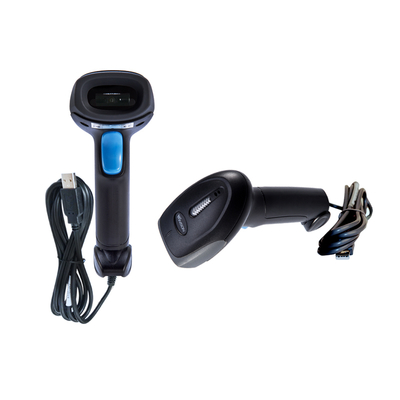

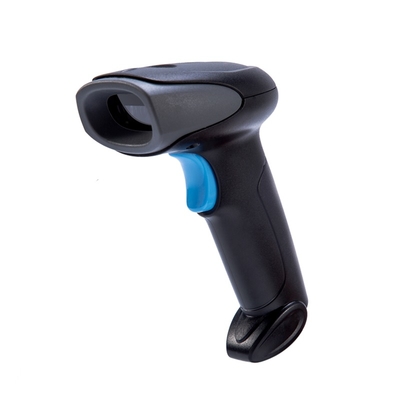

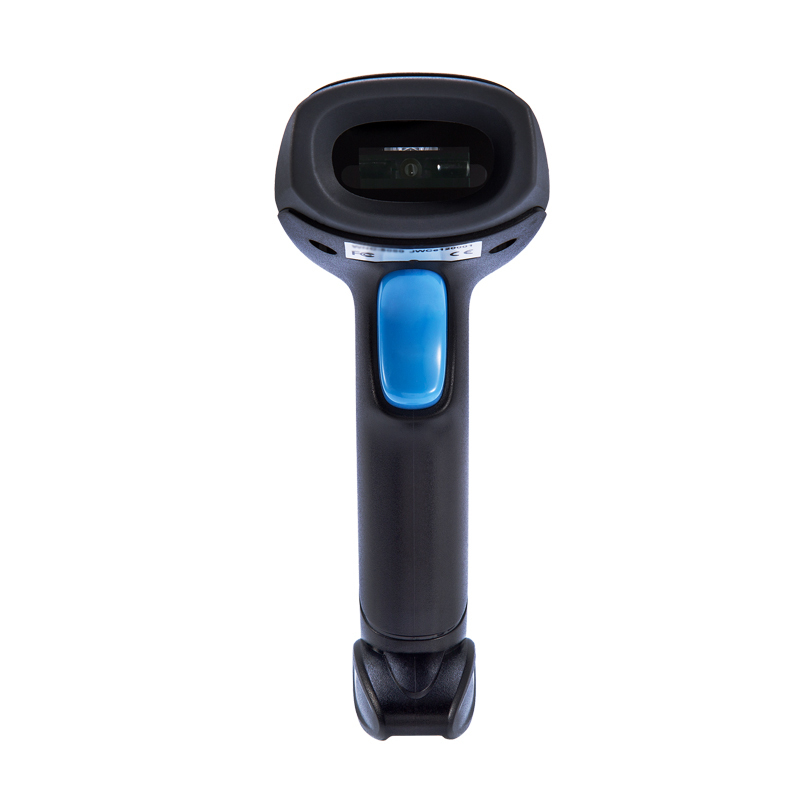

Name: Portable Wireless 2.4GHz Android Handheld Barcode Scanner Cheap 1D CCD Laser Reader USB COM Manufactured Mobile
Brand: Guangzhou Winson Information Technology Co., Ltd.
Availability: InStock

Home Products 1D CCD Barcode Scanner

Portable Wireless 2.4GHz Android Handheld Barcode Scanner Cheap 1D CCD Laser Reader USB COM Manufactured Mobile

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Winson

Contact Now

Detailed Product Description

Private Mold:	Yes	Products Status:	Stock
Type:	Barcode Scanner CCD	Scan Element Type:	CCD
Colour Depth:	32 Bit	Interface Type:	Usb, PS/2, Rs232/485
Max Paper Size:	N/a	Optical Resolution:	1500pix
Scan Speed:	350±50 (scans/second)	Warranty(year):	1-Year
After-sales Service:	Call Center And On-line Technical Support	Software Development Kit (sdk):	NO
Color:	Orange, Black	Product Name:	Barcode Scanner CCD
Interface:	USB HID KEYBOARD/USB VCP/RS-485/RS-232/PS2	Photo Sensor:	CCD Linear Sensor
Voltage Requirement:	DC5V±10%	Current Consumption:	Max :115mA
Min Resolution:	0.127mm/4mil(PCS 0.9)	Min.PCS Value:	>30%UPC/EAN 13(13mil)
Shock Drop Test:	1.8m Drop Onto Concrete Surface	Light Source:	632nm Red LED

Product Description

Specification

Interface Supported	RS-232/USB HID KEYBOARD/USB VCP
Input Voltage	DC 5V±10%
Current	Max:135mA
Image Sensor	CCD Linear Sensor
Light Source	632nm Red LED
Sensor Resolution	1500pixels
Decoding rate:	350 scans/second±20 scans/second
Scanning Angle	Pitch angle:±35°;Skew angle:±75°;Tilt angle:±40°
Min Resolution	0.127/5mil（PCS 0.9）
Min .PCS value	〉25%UPC/EAN 13（13mil）
Language	Multiple Languages
Data Edition	Support for custom data output
Decode Capability	EAN13，EAN8，UPC A，UPC E，CODABAR（NW-7），CODE 39，CODE 93，INTERLEAVED 2OF5，STANDARD 2OF5，MATRIX 2OF5，CODE 128，EAN/UCC 128，CODE 11，CHINESE POST
Dimensions	97mm67mm165mm(LWH)
Weight	132.4g
Indicator	Beeper, LED
Temperature	-20°∽65°C / -4°∽149°F(operation) /-30°∽70°C /-22°∽158°F(storage)
Humidity	5 - 90% (operation) ) 5 - 90% (storage)
Ambient Light:	Up to 80,000 lx
Shock Drop Test	1.5m drop onto concrete surface
