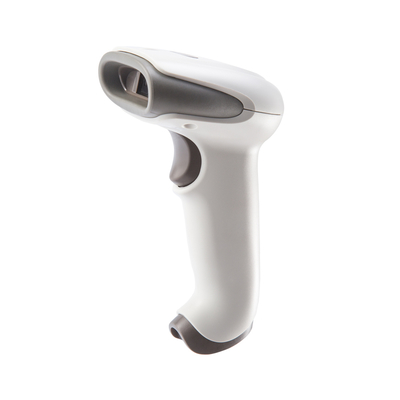

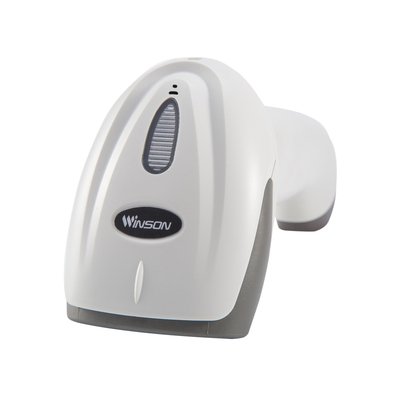

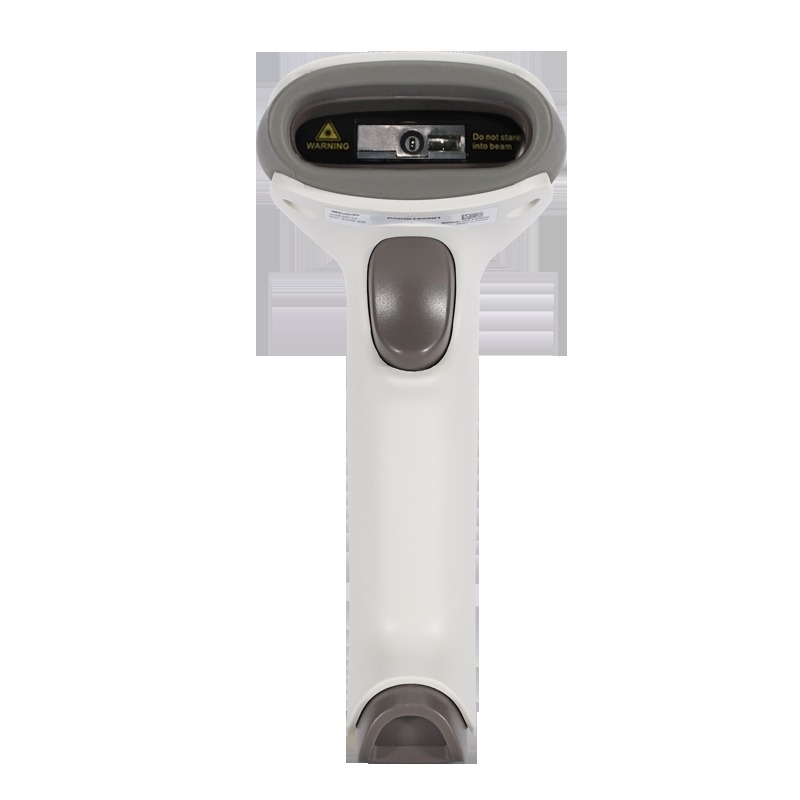

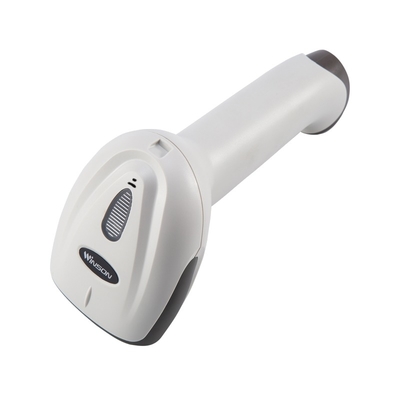

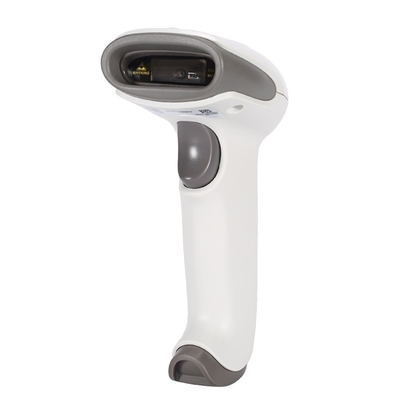

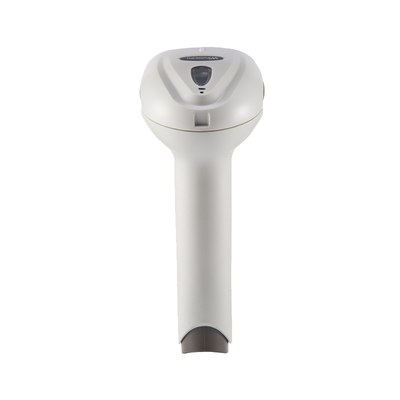

Name: Cheap Price USB CCD Barcode Scanner Wired 1D Barcode Scanner for Sale
Brand: Guangzhou Winson Information Technology Co., Ltd.
Availability: InStock

Home Products 1D CCD Barcode Scanner

Cheap Price USB CCD Barcode Scanner Wired 1D Barcode Scanner for Sale

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Winson

Contact Now

Detailed Product Description

Private Mold:	Yes	Products Status:	Stock
Type:	Barcode Scanner	Scan Element Type:	CCD
Colour Depth:	32 Bit	Interface Type:	Usb, RS232
Max Paper Size:	N/A	Optical Resolution:	640x480 Pixels
Scan Speed:	350 ±50 Scans/second	Warranty(year):	1-Year
After-sales Service:	Call Center And On-line Technical Support	Software Development Kit (sdk):	Yes
Color:	Black	Product Type:	QR Code Scanner
Interface:	USB HID KEYBOARD/USB VCP Or RS-232	Photo Sensor:	CCD Array Sensor
Voltage Requirement:	DC5V±10%	Light Source:	Red LED
Weight:	130g	Indicator:	Beeper, LED

Product Description

Specification

Interface Supported	RS-232/USB HID KEYBOARD/USB VCP
Input Voltage	DC 5V±10%
Current	Max:135mA
Image Sensor	CCD Linear Sensor
Sensor Resolution	1500pixels
Light Source	632nm Red LED
Decoding rate:	350 scans/second±20 scans/second
Min Resolution	0.127/5mil（PCS 0.9）
Scanning Angle	Pitch angle:±35°;Skew angle:±75°;Tilt angle:±40°
Min .PCS value	〉25%UPC/EAN 13（13mil）
Language	Multiple Languages
Data Edition	Support for custom data output
Decode Capability	EAN13，EAN8，UPC A，UPC E，CODABAR（NW-7），CODE 39，CODE 93，INTERLEAVED 2OF5，STANDARD 2OF5，MATRIX 2OF5，CODE 128，EAN/UCC 128，CODE 11，CHINESE POST
Dimensions	90mm67mm168mm(LWH)
Temperature	-20°∽65°C / -4°∽149°F(operation) /-30°∽70°C /-22°∽158°F(storage)
